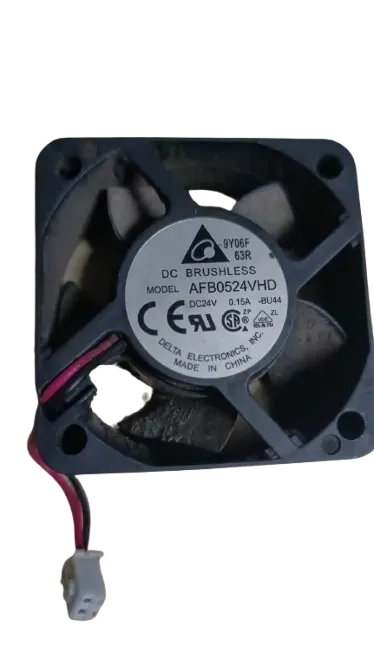

Cooling Fan : AFB0524VHD : Delta

Delta AFB0524VHD 50 mm 24 V DC Brushless Axial Cooling Fan – 7000 RPM, 20.3 CFM Ball-Bearing Fan

The Delta Electronics AFB0524VHD is a compact 50 × 50 × 20 mm DC brushless axial fan for 24 V DC systems. Its ball-bearing motor runs at 7000 RPM and moves 20.3 CFM of air on just 2.4 W, giving strong forced-air cooling in a small footprint. It suits design-in and replacement cooling for power supplies, motor drives, control electronics and electrical enclosures, and is rated for –10 °C to +70 °C operation with a 70,000-hour life at 40 °C.

• 50 × 50 × 20 mm frame, 24 V DC, 2.4 W rated power

• 7000 RPM, 20.3 CFM air flow, 0.303 inH2O static pressure

• Ball bearing with 70,000 h life at 40 °C

• 40.5 dB(A) noise; –10 to +70 °C operating temperature

• CE, UL, CSA and VDE approved; 2 lead wires
