Barcode:
109-235
HS Code:
85365090

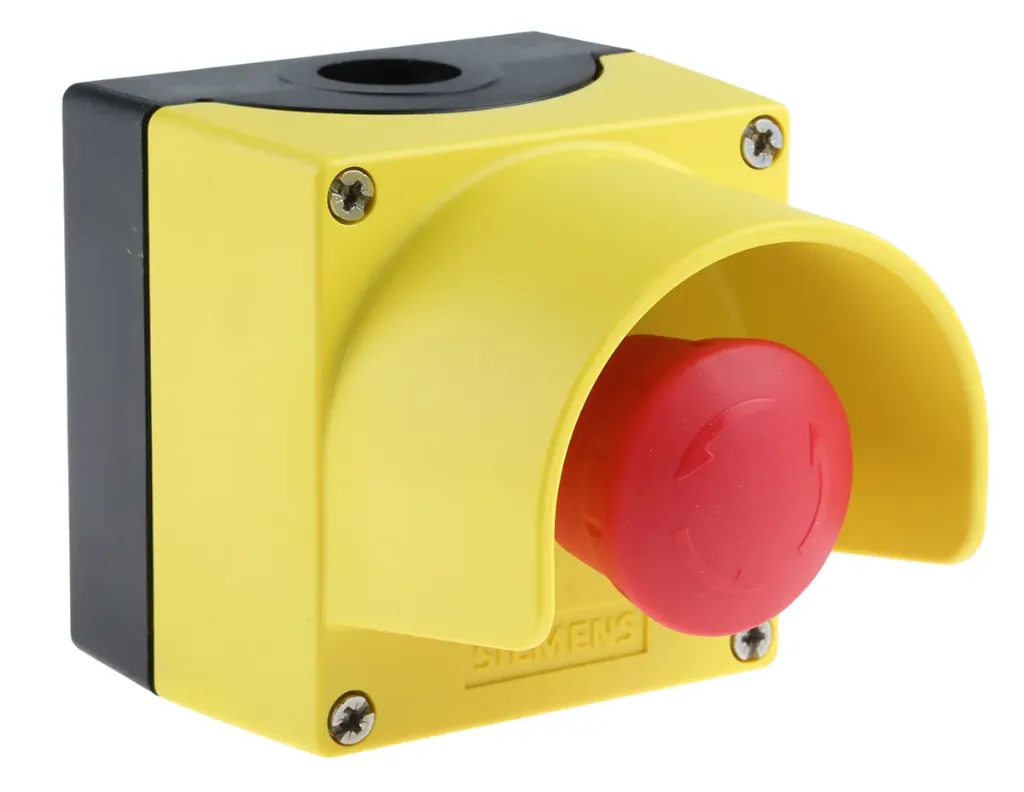

Siemens 3SU1801-0NB00-2AC2 SIRIUS ACT Emergency Stop Control Station — 40 mm Twist-Release, 2 NC, IP69K Washdown Rated
A factory-assembled emergency-stop station built for the hard end of industry. One red 40 mm mushroom pushbutton with positive latching to ISO 13850 sits behind a moulded yellow protective collar; press it and two silver-alloy normally-closed contacts open positively to break the machine's control circuit, and a twist of the head resets it. Sealing to IP66, IP67 and IP69K with a NEMA 4X rating means it stands up to high-pressure washdown, dust and outdoor exposure, and railway-grade shock and vibration ratings suit it to mobile and transit plant. Screw terminals and 1 x M20 entries top and bottom keep wiring simple.
- Red 40 mm mushroom head, positive latching to ISO 13850, rotate-to-unlatch release
- 2 NC silver-alloy contacts with positive opening, 5-500 V AC and DC
- IP66 / IP67 / IP69K and NEMA 4X — suitable for high-pressure washdown
- Shock 15 g / 11 ms and vibration 10-500 Hz at 5 g; EN 61373 Category 1 Class B
- 85 x 85 x 112.5 mm, 0.373 kg, screw terminals with 1 x M20 entry top and bottom
All brand names, trademarks, logos and part numbers are the property of their respective owners and are used for identification only; we are not an authorised distributor or agent of the manufacturer unless expressly stated otherwise.
A factory-assembled emergency-stop station built for the hard end of industry. One red 40 mm mushroom pushbutton with positive latching to ISO 13850 sits behind a moulded yellow protective collar; press it and two silver-alloy normally-closed contacts open positively to break the machine's control circuit, and a twist of the head resets it. Sealing to IP66, IP67 and IP69K with a NEMA 4X rating means it stands up to high-pressure washdown, dust and outdoor exposure, and railway-grade shock and vibration ratings suit it to mobile and transit plant. Screw terminals and 1 x M20 entries top and bottom keep wiring simple.
- Red 40 mm mushroom head, positive latching to ISO 13850, rotate-to-unlatch release
- 2 NC silver-alloy contacts with positive opening, 5-500 V AC and DC
- IP66 / IP67 / IP69K and NEMA 4X — suitable for high-pressure washdown
- Shock 15 g / 11 ms and vibration 10-500 Hz at 5 g; EN 61373 Category 1 Class B
- 85 x 85 x 112.5 mm, 0.373 kg, screw terminals with 1 x M20 entry top and bottom
All brand names, trademarks, logos and part numbers are the property of their respective owners and are used for identification only; we are not an authorised distributor or agent of the manufacturer unless expressly stated otherwise.
