Barcode:
109-234
HS Code:
85365090
LX5-N Explosion-Proof Limit Switch - Ex db IIC T6 Gb / Ex tb IIIC T80 degC Db, IP66 Flameproof Travel Switch
The LX5-N is a flameproof limit (travel) switch for position sensing and travel control of machinery in hazardous areas. Its cast flameproof enclosure carries dual gas and dust explosion protection with IP66 sealing, and a flexible spring-rod actuating head operates the internal control contact when deflected by a moving machine part. It suits conveyors, cranes and hoists, doors and gates, and process machinery in oil & gas, chemical, pharmaceutical and similar plants (gas Zone 1/2; combustible-dust Zone 21/22).

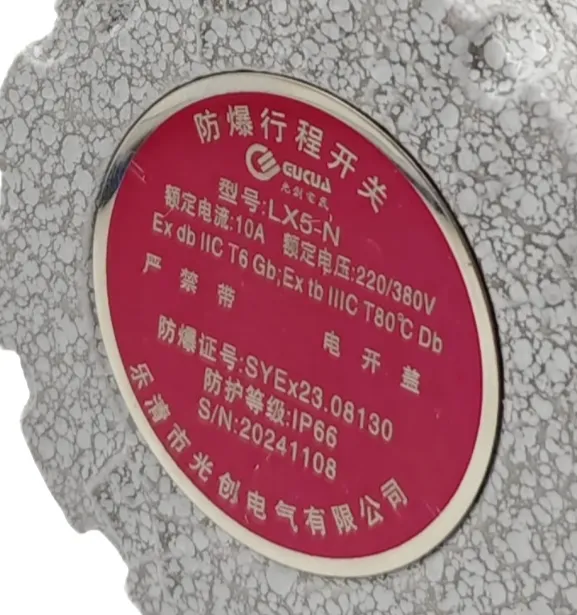

- Dual Ex marking: Ex db IIC T6 Gb (gas) / Ex tb IIIC T80 degC Db (dust)
- Rated 220/380 V AC, 10 A
- IP66 cast flameproof enclosure
- Flexible spring-rod ("wobble-stick") actuating head
- Chinese explosion-protection certificate SYEx23.08130
- Manufactured by Yueqing Guangchuang Electric Co., Ltd.
Do not open the enclosure while energised.
All brand names, trademarks, logos and part numbers are the property of their respective owners and are used for identification and reference only. We are not an authorised distributor or agent of the manufacturer unless expressly stated otherwise.
The LX5-N is a flameproof limit (travel) switch for position sensing and travel control of machinery in hazardous areas. Its cast flameproof enclosure carries dual gas and dust explosion protection with IP66 sealing, and a flexible spring-rod actuating head operates the internal control contact when deflected by a moving machine part. It suits conveyors, cranes and hoists, doors and gates, and process machinery in oil & gas, chemical, pharmaceutical and similar plants (gas Zone 1/2; combustible-dust Zone 21/22).
- Dual Ex marking: Ex db IIC T6 Gb (gas) / Ex tb IIIC T80 degC Db (dust)
- Rated 220/380 V AC, 10 A
- IP66 cast flameproof enclosure
- Flexible spring-rod ("wobble-stick") actuating head
- Chinese explosion-protection certificate SYEx23.08130
- Manufactured by Yueqing Guangchuang Electric Co., Ltd.
Do not open the enclosure while energised.
All brand names, trademarks, logos and part numbers are the property of their respective owners and are used for identification and reference only. We are not an authorised distributor or agent of the manufacturer unless expressly stated otherwise.
Available from TONUS Group — Industrial MRO & Spare Parts supplier with IT Solutions expertise, serving companies in India, UAE, GCC and Worldwide.
