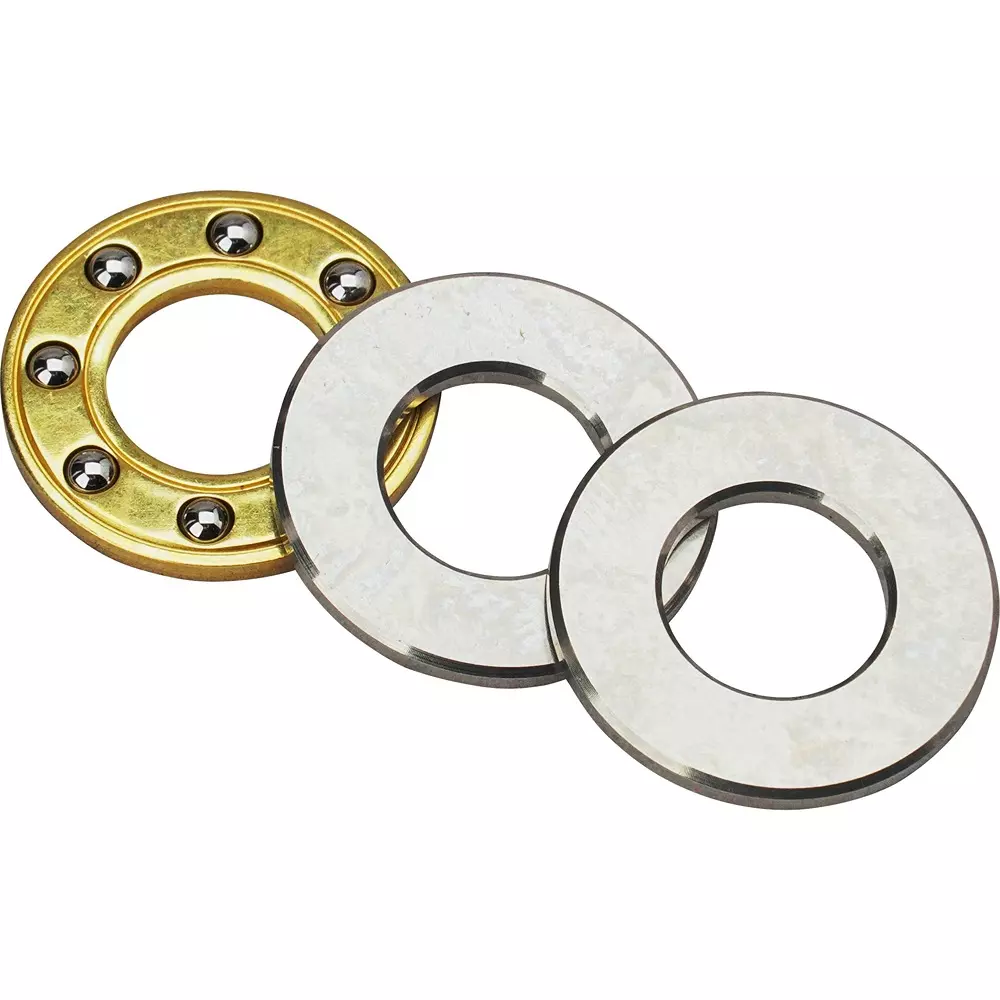

NMB DDT-1680DSG Miniature Thrust Ball Bearing 8x16x5 mm - Grooved Stainless Steel, 3,918 N Dynamic Rating
The NMB DDT-1680DSG is a single-direction miniature thrust ball bearing built to carry axial load in a very small space. Two separable stainless steel washers with machined raceway grooves seat the ball set positively, so the bearing turns smoothly under push load with noticeably less torque than a plain thrust washer. With an 8 mm bore, 16 mm outside diameter and just 5 mm of height, it drops neatly into feed screws, screw jacks, small gearboxes, model drivetrains and pivot assemblies where a shaft has to spin freely while taking a thrust load. Made by MinebeaMitsumi, the world's largest producer of miniature ball bearings.
- Dimensions: 8 mm bore x 16 mm outside diameter x 5 mm height
- Grooved raceway design (T-DSG series) for higher capacity and lower running torque
- Basic dynamic load rating 3,918 N | basic static load rating 4,990 N
- Martensitic stainless steel rings, JIS Class 0 precision
- Open type, single row, single-direction thrust - RoHS compliant
All brand names, trademarks and part numbers are the property of their respective owners and are used for identification only; we are not an authorised distributor unless expressly stated.
The NMB DDT-1680DSG is a single-direction miniature thrust ball bearing built to carry axial load in a very small space. Two separable stainless steel washers with machined raceway grooves seat the ball set positively, so the bearing turns smoothly under push load with noticeably less torque than a plain thrust washer. With an 8 mm bore, 16 mm outside diameter and just 5 mm of height, it drops neatly into feed screws, screw jacks, small gearboxes, model drivetrains and pivot assemblies where a shaft has to spin freely while taking a thrust load. Made by MinebeaMitsumi, the world's largest producer of miniature ball bearings.
- Dimensions: 8 mm bore x 16 mm outside diameter x 5 mm height
- Grooved raceway design (T-DSG series) for higher capacity and lower running torque
- Basic dynamic load rating 3,918 N | basic static load rating 4,990 N
- Martensitic stainless steel rings, JIS Class 0 precision
- Open type, single row, single-direction thrust - RoHS compliant
All brand names, trademarks and part numbers are the property of their respective owners and are used for identification only; we are not an authorised distributor unless expressly stated.
