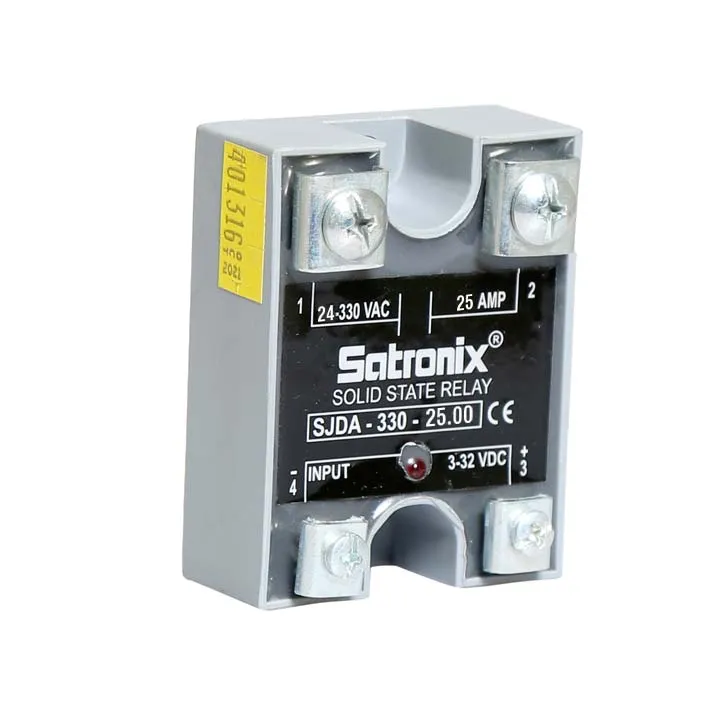

Satronix SJDA-330-25.00 Solid State Relay — 25A Single-Phase DC-to-AC SSR for Silent, Long-Life Switching
The Satronix SJDA-330-25.00 is a single-phase solid state relay that switches AC loads up to 25A from a simple 3–32V DC control signal — no moving parts, no contact wear, and no switching noise. Using optically-isolated, zero-cross switching, it delivers fast, arc-free operation that far outlasts a mechanical contactor, ideal for temperature and heater control. It mounts on a panel or heat sink with four screw terminals and a protective cover, with an on-board LED showing the control state.
• Single-phase DC-to-AC SSR; 25A load rating (with adequate heat sink) • Control 3–32V DC; load 25–330V AC • Zero-cross switching with optical isolation • Silent, arc-free, long-life switching, no moving parts • 4 screw terminals + protective cover; LED indicator; CE markedAvailable from TONUS Group — Industrial MRO & Spare Parts supplier with IT Solutions expertise, serving companies in India, UAE, GCC and Worldwide.
