Barcode:
109-222
HS Code:
85413010

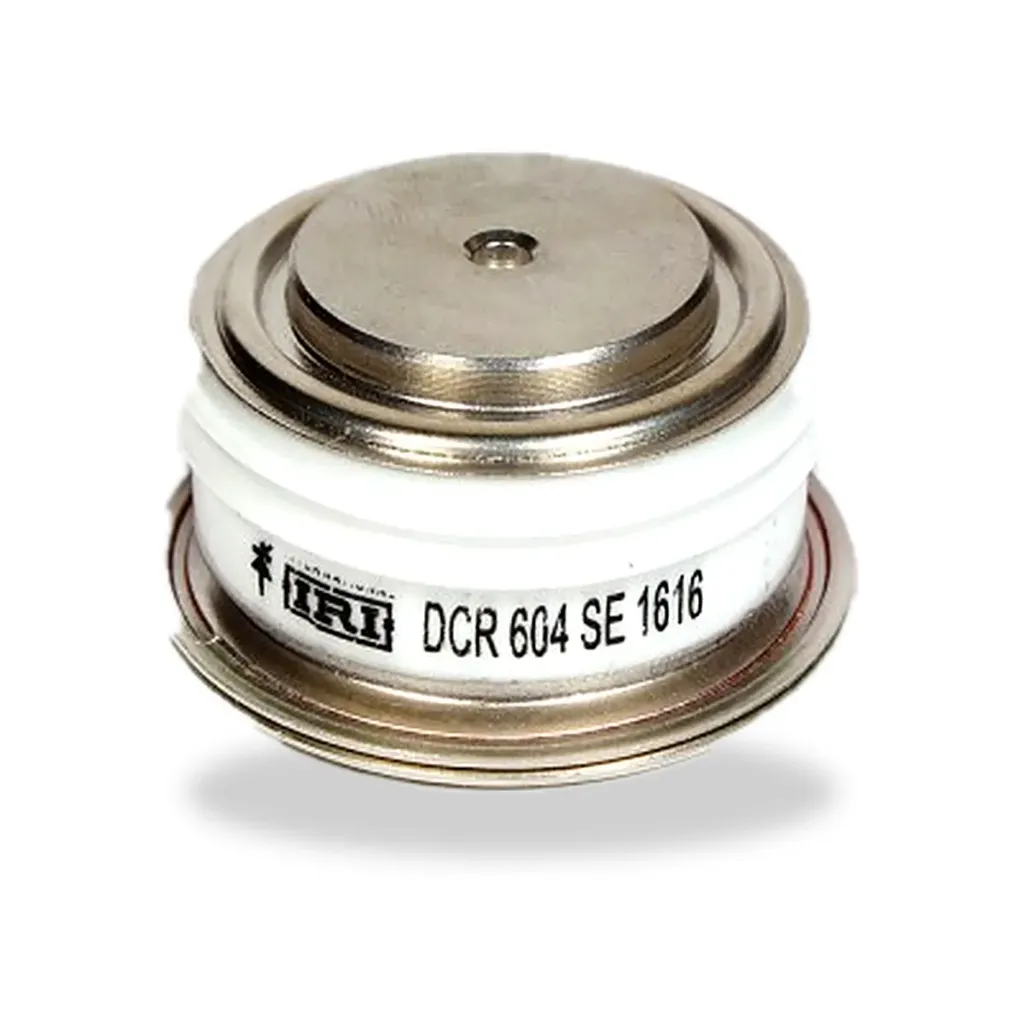

The DCR604SE1616 is a compact, double-side-cooled capsule-type phase control thyristor (silicon controlled rectifier) rated for 706 A mean on-state current at 1600 V. Triggered through its gate, it switches and regulates large AC and DC currents with very low conduction losses and high surge capability, making it a dependable workhorse for high-power conversion and control. It is widely used in controlled rectifiers, high-power drives, DC motor control and high-voltage power supplies.
- 706 A mean on-state current, double-side cooled (IT(RMS) 1109 A)
- 1600 V repetitive peak off-state / reverse voltage (VRSM 1700 V)
- High non-repetitive surge rating: 8.1 kA (10 ms half-sine)
- Double-side-cooled capsule housing, fatigue-free design
- Compact and light: 82 g nominal, 8 kN clamping force
- 706 A mean on-state current, double-side cooled (IT(RMS) 1109 A)
- 1600 V repetitive peak off-state / reverse voltage (VRSM 1700 V)
- High non-repetitive surge rating: 8.1 kA (10 ms half-sine)
- Double-side-cooled capsule housing, fatigue-free design
- Compact and light: 82 g nominal, 8 kN clamping force
Available from TONUS Group — Industrial MRO & Spare Parts supplier with IT Solutions expertise, serving companies in India, UAE, GCC and Worldwide.
