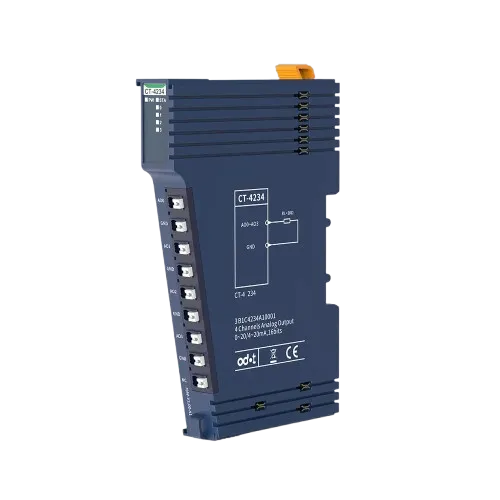

ODOT CT-4234 — 4-Channel Analog Current Output Module (0/4–20 mA, 16-bit)
The ODOT CT-4234 is a 4-channel analog output module delivering 0/4–20 mA at 16-bit resolution to drive valve positioners, VFD references and other 4–20 mA control inputs, opto-isolated from the internal bus.
Key features:
• 4 single-ended analog current outputs, 0–20 mA or 4–20 mA (selectable)
• 16-bit resolution
• Drives valve positioners, VFD setpoints and 4–20 mA control loops
• Per-module opto-isolation (3 kV rms) from the internal bus
• 35 mm DIN-rail mounting; IP20; CE / RoHS
Available from TONUS Group — Industrial MRO & Spare Parts supplier with IT Solutions expertise, serving companies in India, UAE, GCC and Worldwide.
