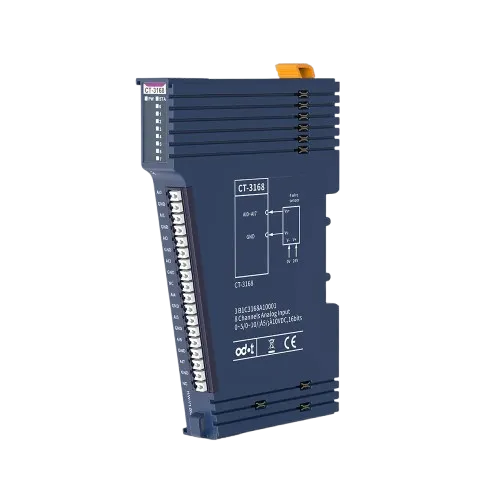

ODOT CT-3168 — 8-Channel Analog Voltage Input Module (±10 V, 15/16-bit)
The ODOT CT-3168 is an 8-channel analog voltage input module with selectable 0–5 V, 0–10 V, ±5 V and ±10 V DC ranges at 15/16-bit resolution, reading voltage-output sensors and transmitters into the C-Series remote I/O system.
Key features:
• 8 single-ended analog voltage inputs
• Selectable 0–5 V, 0–10 V, ±5 V, ±10 V DC ranges
• 15/16-bit resolution
• Per-module opto-isolation (3 kV rms) from the internal bus
• 35 mm DIN-rail mounting; IP20; CE / RoHS
Available from TONUS Group — Industrial MRO & Spare Parts supplier with IT Solutions expertise, serving companies in India, UAE, GCC and Worldwide.
