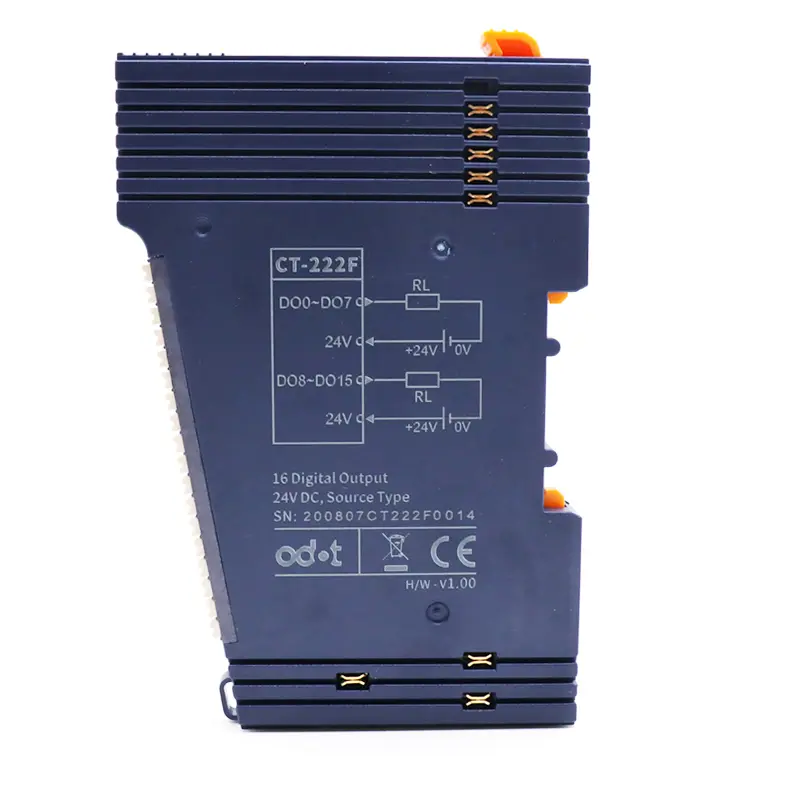

ODOT CT-222F — 16-Channel Digital Output Module (24 V DC, Source / PNP, 0.5 A)
The ODOT CT-222F is a 16-channel digital output module for C-Series remote I/O systems, delivering 24 V DC source (PNP) outputs rated up to 500 mA per channel to drive solenoids, relays, contactors and indicator lamps, each channel opto-isolated from the internal bus with its own status LED.
Key features:
• 16 digital outputs, 24 V DC, source (PNP) type
• Up to 500 mA per channel for solenoids, relays, contactors and lamps
• Per-channel opto-isolation (3 kV rms) with individual status LEDs
• Push-in / spring terminals (max 1.5 mm² / AWG 16); 35 mm DIN-rail mounting
• IP20; -35 to +70 °C operating range; CE / RoHS
Available from TONUS Group — Industrial MRO & Spare Parts supplier with IT Solutions expertise, serving companies in India, UAE, GCC and Worldwide.
