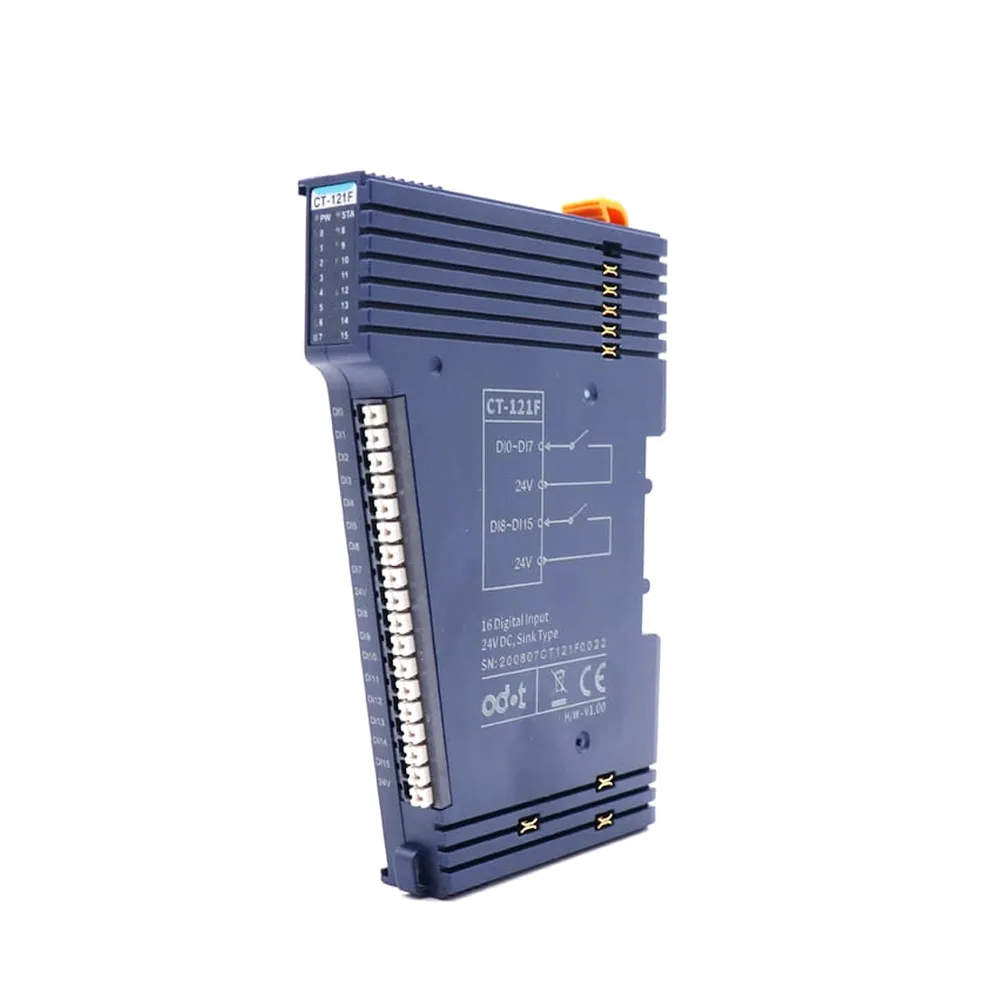

ODOT CT-121F — 16-Channel Digital Input Module (24 V DC, Sink / NPN)
The ODOT CT-121F is a 16-channel digital input module for C-Series remote I/O
systems, reading 24 V DC field signals in sink (NPN) configuration. It accepts
dry contacts or active 2-wire / 3-wire sensor outputs, with every channel
opto-isolated from the internal bus and shown on its own status LED. Compact and
DIN-rail mounted with push-in spring terminals, it is built for fast wiring and
reliable signal acquisition in machine control, conveyor and sorting lines, and
general factory automation.
Key features:
• 16 digital inputs, 24 V DC, sink (NPN), high-level active
• Per-channel opto-isolation (3 kV rms) with individual status LEDs
• 32-bit counter on every channel (up to 200 Hz) with configurable input filter
• Push-in spring terminals (max 1.5 mm² / AWG 16); 35 mm DIN-rail mounting
• Wide -35 to +70 °C operating range; IP20; CE / RoHS
